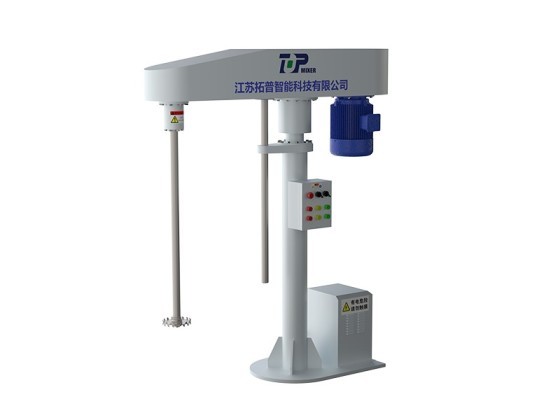

This series of dispersed mixers can be equipped with toothed dispersing discs for high-speed dispersion mixing, or with various types of stirrers for mixing in various situations. This series of mixers are commonly used in the chemical industry for the mixing, dissolving and dispersing of liquids and liquid-solid materials such as coatings, dyes, pigments and adhesives.
Minimal air entrainment during mixing and dispersing, excellent mixing and homogenization effects, using medium or high-speed stirring, dispersion allows materials to dissolve quickly and reduce particle size.
| Model/Parameters | FG200 Frame | FG250 Frame | FG350 Frame | |||
|---|---|---|---|---|---|---|
| FL2.2 | FL4 | FL5.5/FL7.5 | FL11 | FL22 | ||
| Main Engine Power kw | 2.2 | 4 | 5.5/7.5 | 11 | 22 | |
| Dispersing Shaft Speed r/min | Electromagnetic Speed Regulation | 0-1250 | 0-1250 | 0-1250 | 0-1250 | 0-1250 |
| Frequency Conversion Speed Regulation | 0-1450 | 0-1450 | 0-1450 | 0-1450 | 0-1450 | |
| Dispersing Wheel Diameter mm | Φ180-200 | Φ200 | Φ250 | Φ250 | Φ300-350 | |
| Lifting Stroke mm | 600 | 800 | 900 | 900 | 1200 | |
| Pump Power KW | 0.55 | 0.55 | 0.75 | 0.75 | 1.1 | |
| Tank Capacity L | 100 | 200 | 300-500 | 500-800 | 1000-1500 | |
| Weight kg | 500 | 500 | 600 | 800 | 1500 | |
| Dimensions | A mm | 1400 | 1700 | 1820 | 1820 | 2400 |
| B mm | 940 | 1500 | 1800 | 1800 | 2200 | |
| C mm | 350 | 600 | 700 | 700 | 1100 | |
| Width W mm | 500 | 580 | 900 | 900 | 1200 | |
