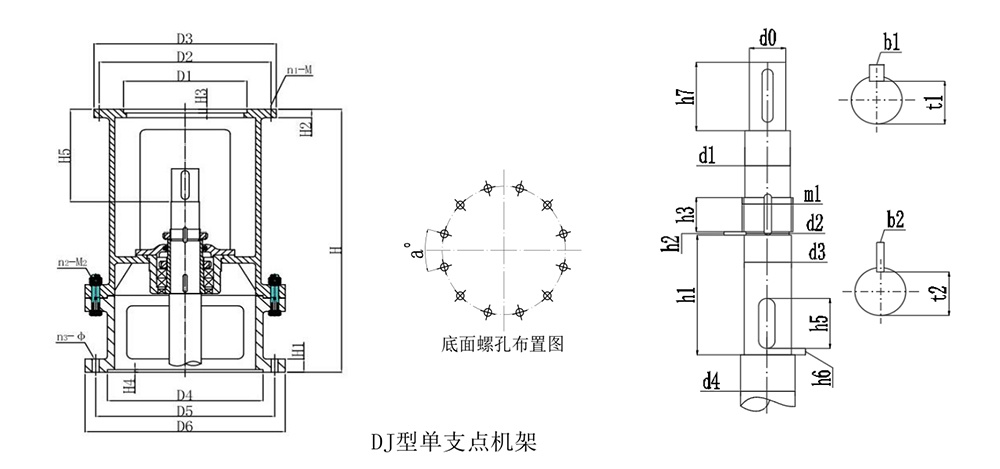

DJ type single-point rack (Type A)

Model	H	H1	H2	H3	H4	Input interface				Output interface					A type
Model	H	H1	H2	H3	H4	D1	D2	D3	n1-M	D4	D5	D6	a°	n3-φ	n2-M2	H5	Coupling size
DJ25	500	14	12	4	3	130	165	200	4-M10	185	240	285	45	8-φ18	8-M16	127	GT25×50
DJ30	500	14	12	4	3	130	165	200	4-M10	230	285	315	45	8-φ18	8-M16	127	GT30×61
DJ35	550	14	12	4	3	130	165	219	4-M10	240	295	340	45	8-φ18	8-M16	145	GT30×61/35×65
DJ40	550	14	12	4	3	130	165	219	4-M10	240	295	340	45	8-φ18	8-M16	145	GT40×81
DJ45	550	16	15	4	3	130	165	219	4-M10	280	320	360	45	8-φ18	8-M16	155	GT40×81/45×81
DJ55	580	16	15	5	3	180	215	273	4-M12	325	400	435	30	12-φ18	12-M16	180	GT55×102
DJ65	700	16	15	6	4	215	265	300	4-M12	350	420	460	30	12-φ18	12-M16	207	GT65×132
DJ70	700	16	15	6	4	215	265	300	4-M12	350	420	460	30	12-φ18	12-M16	207	GT70×132
DJ80	690	18	16	6	4	250	300	350	4-M16	380	455	495	30	12-φ18	12-M16	259	GT80×162
DJ90	690	18	16	6	4	350	400	450	8-M16	430	510	555	30	12-φ23	12-M20	260	GT80×162/90×192
DJ100	750	20	18	6	4	350	400	450	8-M16	480	560	620	22.5	16-φ23	16-M20	280	GT100×192
DJ110	750	20	18	6	5	450	500	550	8-M16	560	650	700	22.5	16-φ27	16-M24	330	GT110×222
DJ120	850	20	18	6	5	450	500	550	8-M16	560	650	700	22.5	16-φ27	16-M24	330	GT120×222
DJ130	950	22	20	6	5	550	600	660	8-M20	720	810	880	18	20-φ27	20-M24	400	GT130×222
DJ140	950	22	20	6	5	720	810	880	8-M20	720	810	880	18	20-φ27	20-M24	Determined by our company according to Specific matching
DJ150	950	24	22	7	5	840	940	1020	8-M20	840	940	1020	22.5	16-φ33	16-M30
DJ160	950	24	22	7	5	840	940	1020	8-M20	840	940	1020	22.5	16-φ33	16-M30
DJ180	1050	24	22	7	5	970	1080	1160	8-M20	970	1080	1160	22.5	16-φ33	16-M30

Model	Stirring shaft end dimensions																		Frame weight (kg)
Model	h1	h2	h3	h4	h5	h6	h7	d0	d1	d2	M1	d3(h9)	d4	R1	t1	b1	t2	b2	Frame weight (kg)
DJ25	70	3	25	34	50	5	50	25	27	27	M30×1.5	30	35	1	26	5	26.5	6	33
DJ30	73	3	25	34	50	5	50	30	33	32	M35×1.5	35	40	1	31	6	31.5	6	39
DJ35	103	3	25	34	60	5	60	35	42	42	M45×1.5	45	50	1	41	6	41.5	6	54
DJ40	103	3	25	34	60	5	60	35	42	42	M45×1.5	45	50	1	41	6	41.5	6	54
DJ45	107	3	30	41	60	5	75	45	47	47	M50×1.5	50	60	1	46	8	46	8	63
DJ55	117	4	30	42	60	5	90	55	57	57	M60×2	60	70	1	56	8	56	8	99
DJ65	125	4	35	49	90	5	100	65	72	72	M75×2	75	80	1	69	10	70	10	112
DJ70	125	4	35	49	90	5	100	65	72	72	M75×2	75	85	1	69	10	70	10	112
DJ80	131	4	35	49	90	5	120	80	82	82	M85×2	85	90	1.5	79	10	80	10	151
DJ90	131	4	40	56	90	5	130	90	92	92	M95×2	95	110	1.5	89	12	90	12	183
DJ100	151	4	50	68	100	10	130	100	112	112	M115×2	115	125	2	109	14	109.5	14	248
DJ110	181	4	50	68	140	10	150	100	112	112	M115×2	115	125	2	109	14	109.5	14	351
DJ120	193	4	50	68	150	10	150	120	122	122	M125×2	125	140	2	119	14	119.5	14	351
DJ130	208	4	50	68	150	10	180	130	135	137	M140×2	140	150	2	132	14	134.5	14	511
DJ140	208	4	50	70	150	10	180	140	145	147	M150×2	150	160	2	142	16	144	16	511
DJ150	208	4	50	70	180	10	200	150	155	156	M160×3	160	170	2	152	16	154	16	527
DJ160	227	4	50	70	180	10	200	160	165	166	M170×3	170	180	2	162	16	164	16	527
DJ180	242	4	50	70	180	10	200	180	185	186	M190×3	190	200	2	180	18	182	18	653
