The PDY six-blade straight-blade disc turbine impeller features a concave upper-middle shape suitable for bottom bearing or top-discharge valve installation.
-

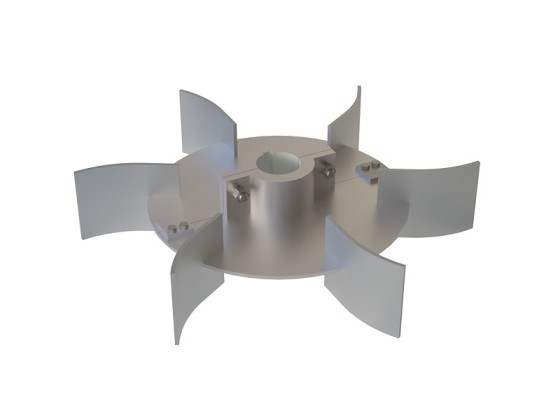

The WDY six-curved-blade disc turbine impeller is a radial flow impeller. Under baffled conditions, the WDY impeller is particularly suitable for solid suspension;
-

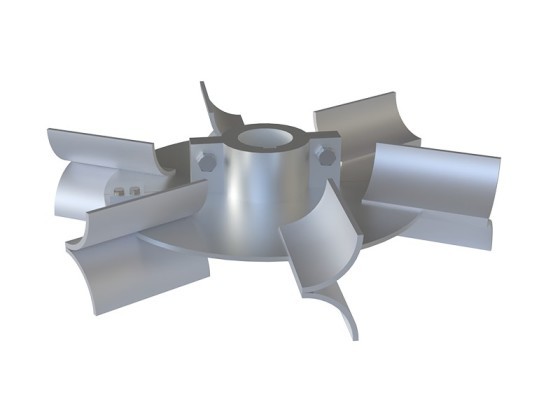

The JDY six-blade disc turbine impeller features two circulatory flows in opposite directions along the axial direction. The impeller blade surface has two quarter-inner tube surfaces, resulting in high axial displacement and low power consumption.
-

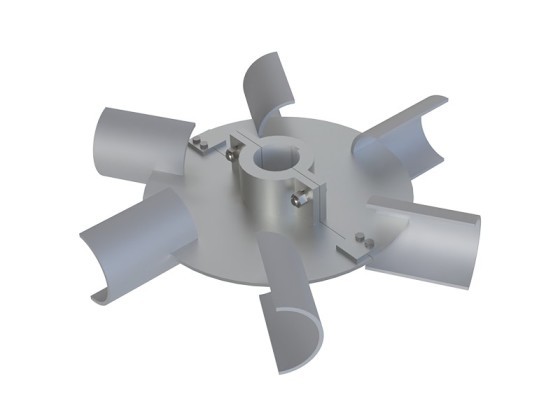

The HDY six-arc blade disc turbine impeller is a radial flow impeller with an inwardly curved blade surface. It possesses strong radial displacement and dispersion capabilities
-

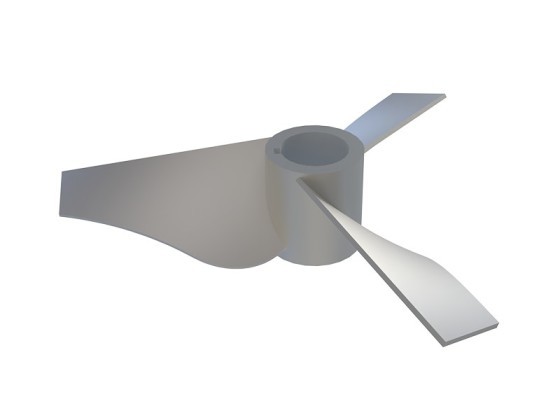

The GX high-efficiency energy-saving impeller features a large blade root arc surface that enhances the displacement of the stirring rotation center, making the blade's radial displacement more uniform.
-

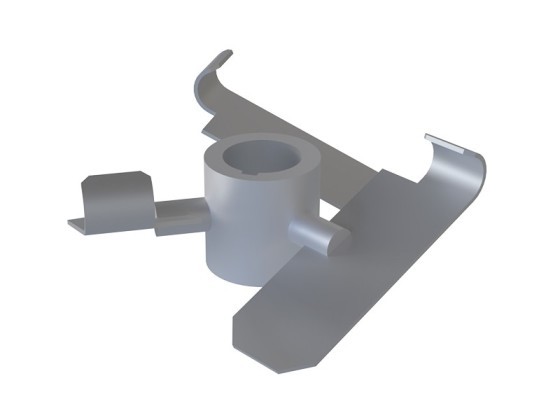

The JQS aeration impeller features a two-stage disperser, enabling high gas volume, stable performance, and good pumping characteristics.
-

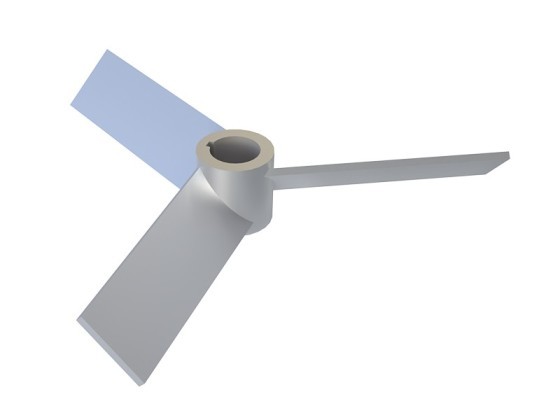

The YK three-blade inclined turbine impeller is a comprehensive impeller with a certain axial circulation capacity. At low speeds, its performance is similar to that of the XJ inclined blade impeller, and at high speeds, it has a certain dispersion capacity.
-

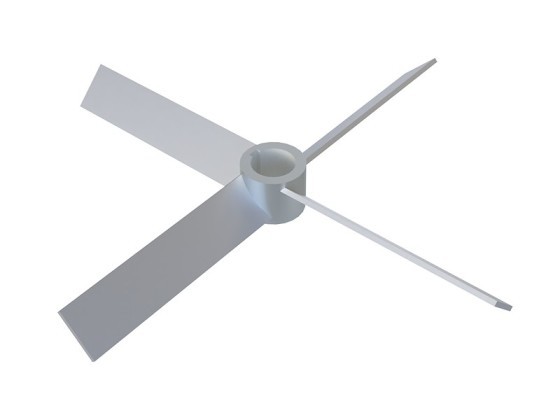

The XCK four-blade inclined vortex impeller is a comprehensive impeller with good axial, radial, and tangential flow, providing excellent convective circulation and turbulent diffusion capabilities.
